PN / SEE-GL001H *

Specifications:

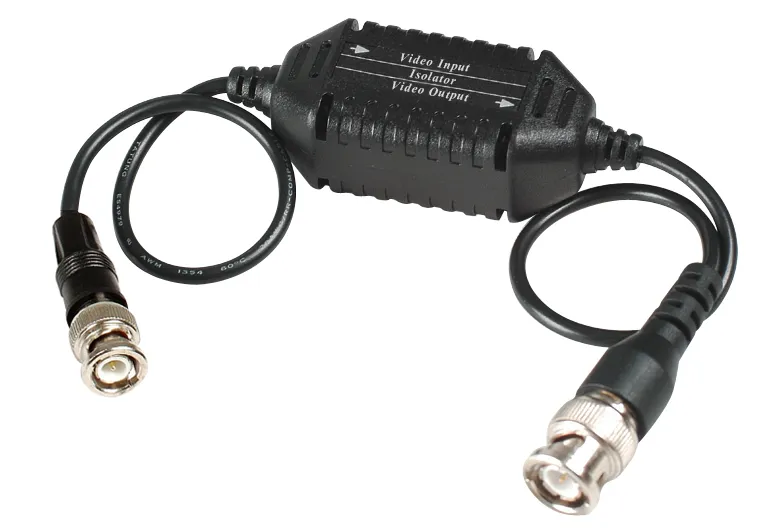

The GL001H Video Ground Loop Isolator is passive devices which reduce Ground Loop Interference with CCTV signals and can easily install in a new or added to existing systems.   It is useful where a video signal is transmitted via cable between points with different ground potentials, Differences in ground potentials are typically caused by unbalanced power line loads.

Features:

• BNC male to BNC female with mini cable 15cm on both sides.
• Passive type, no power need.
• Hi Performance to eliminate ground loop problem.
• Low video loss , Bandwidth: 20hz -11Mhz , 0/-3Db
• Prevents video-signal distortion caused by video ground loops.
• Eliminates picture tearing, cross talk and rolling.
• Prevents power cables laid by others interfering with the CCTV system.

• ITEM NO.	GL001H
  Insertion Loss
  Bandwidth	20Hz -11MHz, 0/-3dB
  Input Resistance	75 ohm
  Output Resistance	75 ohm
  Ground loop rejection	>90dB @>50Hz
  Isolation Voltage	600VDC (Min)
  Insulation Resistance	100m Ohm
  Transient Voltage Suppressors	12 Vrms
  Dimensions (mm)	28x26.5x73 with 15cmx2 cable
  Material	ABS Black
