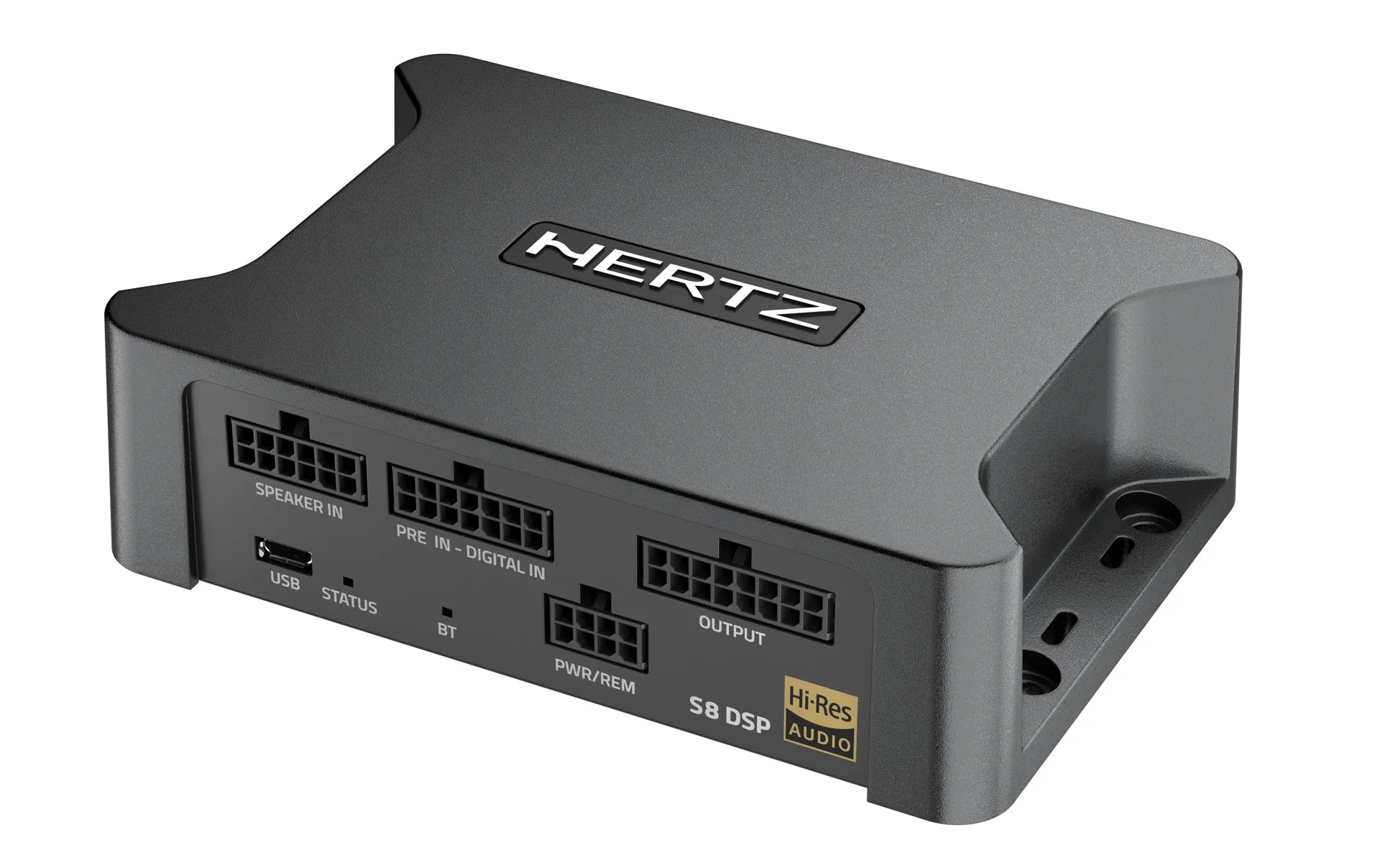

Name: Hertz S8DSP Compact Processor for Cars Motorcycles and Boats
SKU: 1296217

Product Details ＋

Highlights

The ultra-compact S8 DSP is the perfect solution for integrating any OEM source& into your audio upgrade project for cars, motorcycles, and boats! S8 DSP is a distilled essence of technology at the service of the highest audio quality in a corrosion-free case cast in metal and composite materials.

S8 DSP processes the audio signal with 96 kHz / 24-bit resolution and has obtained the Hi-Res certification from the JAS (Japan Audio Society), an acknowledgment that certifies the extreme level of audio performance achieved.

The powerful 32-bit DSP manages 6 high/low-level analog input channels, one digital coaxial input, and 8 output channels, offering maximum freedom of configuration to the specialist. The SPDIF coaxial input is ideal for digital connection with a Hi-Res player, a solution that allows for maximum listening quality. For each of the eight output channels we have a level control, the 15-pole parametric equalizer, time delays, and crossover filter available. The 7-band parametric equalizer of the input signal allows obtaining a flat response from OEM sources, which often have an exaggerated emphasis on the low frequency.

Input Stage

Analog low level Inputs	6 ch. (Differential input) (Molex microfit to RCAs)
Analog high level Inputs	6 ch. (Differential input) (Molex microfit to tipped ends) USS (Universal Speakers Simulator)
Digital Inputs	Yes (Coaxial SPDIF; up to 24bit 96KHz) (Molex microfit to RCA)
Input sensitivity (low level)	0.8V - 6V RMS
Input sensitivity (high level)	2.5V - 21V RMS
Analog input management	Audio input routing matrix type
Analog input eq	7 band paragraphic for each input channel
ART	Automatic Remote Turn-On with Speaker-In

Output Stage

Analog outputs (RCA)	8-Channels
Max output level (RMS) @ 0.05% THD	4V
96dB Analog outputs management	The DSP controls each output channel: gain, crossover, EQ, delay, polarity
Bandwidth	10Hz - 40kHz ( /-3dB)
Signal to noise ratio (A weighted)	105 dBA (Analog Input) 112dBA (Digital Input)
THD N (@ 1Vrms out, @ 1Khz)	<0.005%
Crosstalk (channel separation) @1KHz	>95dBA

Digital Signal Processor

Sample Rate	96KHz
Bit depth	24
Output equalizer	15 bands per channel w/ adjustable Q and Frequency
Equalizer resolution	1/10th dB per step 12 dB / -12 dB
Time alignment (distance)	0 ÷ 468.4 cm / 0 ÷ 184.4 inches
Time alignment (time)	0 ÷ 13.5ms
Time alignment (step)	0,08 ms; 2,8 cm / 1.1 inch
Time alignment (fine set)	0,02 ms; 0,7 cm / 0.27 inch
Crossovers	AP / HP / LP / BP all channels
Crossover Type	Butterworth, Linkwitz-Riley, Bessel (All Channels)
Crossover Slope	From 6dB/oct. until 30dB/oct. (6dB step)
Crossover Steps	120 steps 20Hz-20kHz
Mute Fuction	Mute every channel separately or all together
Presets	4 Presets
Preset Selection	2 Specific Wires to control the 4 presets selection by exteral switches
Input selection by wire	One specific wire to select the desired input between Analog or Digital
Audio Signal Comprssor on Output Stage	Yes (enable/disable)
DSP chipset	Analog Device: ADAU1451
DSP management by bt app (iOS / Android)	1. CONFIGURATOR mode Mainly it’ll allow the DSP tuning. You can manage every DSP functon through your smartphone/ tablet/PC/MAC. 2. DRC mode The BT device becomes a remote control by using the dedicated app with a simple graphical user interface. Manage volume level, SUB level, select different setup files, upload a new setup file.
Setup file sharing via BT	Upload a setup file via BT through the BT APP when in "Configuration" or "DRC" mode.
DSP management by PC / MAC / iOS / Android	Microsoft Windows(32/64 bit): Windows 10(USB and BT BLE) Windows 11 (UBS and BT BLE) Mac Os: 10.13 Hight Sierra or later (USB and BT BLE)
