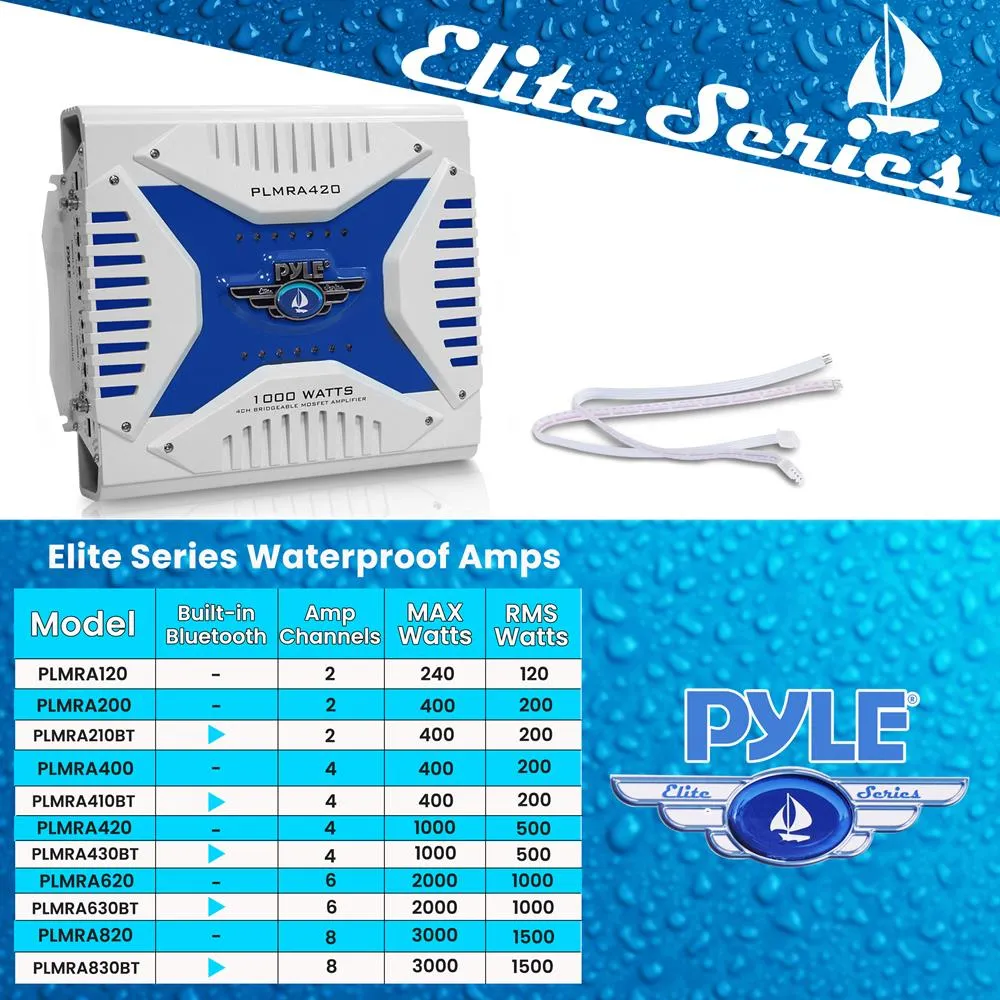

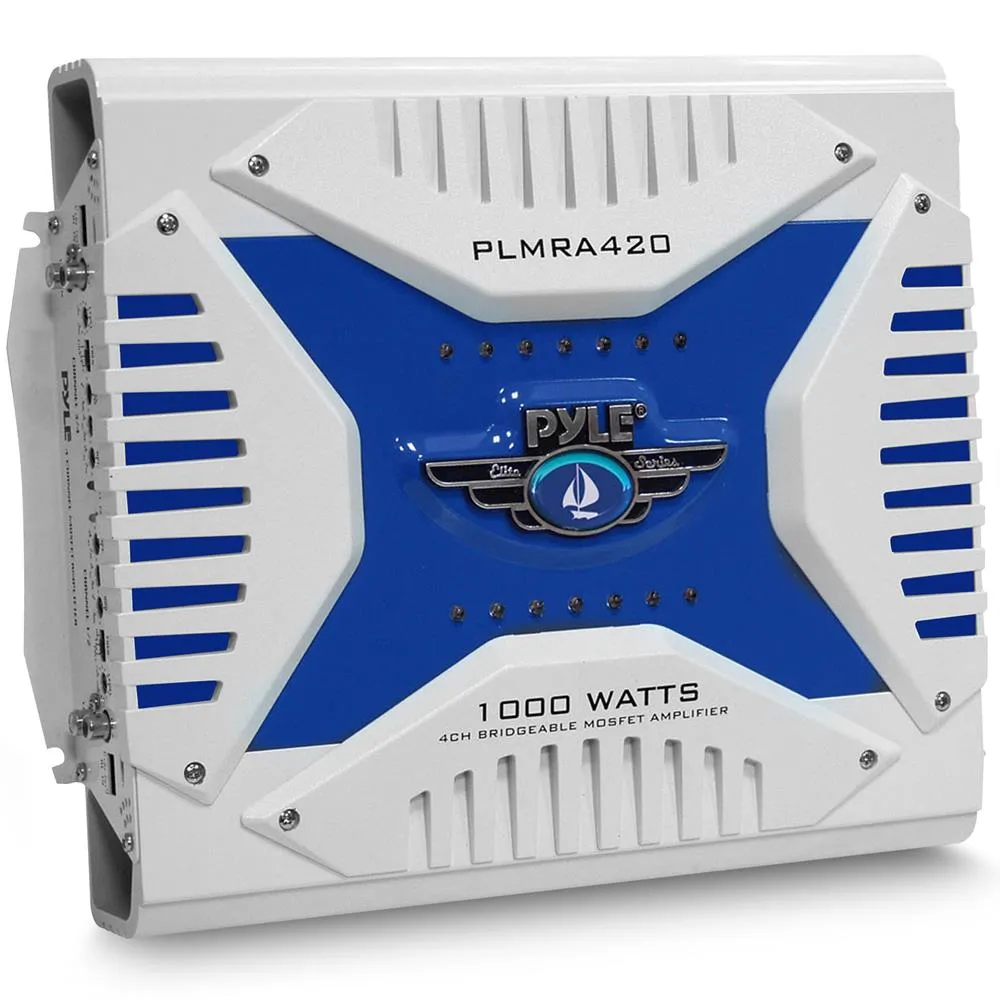

The Pyle Elite Series Amps provide waterproof power for all of your speaker needs. The marine grade waterproof construction and high-power efficiency ratings provide performance and reliability -- rain or shine! These multi-channel amplifiers are perfect for the back yard, boat or even by the pool! Additional features include MOSFET power supplies, built-in electronic circuitry protection, heavy-duty aluminum heat sinks and more. Enjoy versatile waterproof performance and next level sound amplification with the Pyle Elite Series Amps. (Models: PLMRA200, PLMRA400, PLMRA420, PLMRA620, PLMRA820).

• System Features: - Marine Grade Construction - Dual RCA (L/R) Input Connector Jacks - Built-in Thermal, Overload & Speaker Short Protection - 250 Watt x 4 Power Output - Input Sensitivity: 250mV (Low), 2.5V (High)
• Bridgeable Audio Amplifier - Waterproof Marine Rating IP-01 - Dual High Pass, Low Pass & Bass Boost Controls - Heavy Duty Aluminum Alloy Heatsink - Amplifier Class: AB - Variable Bass Boost: 0 /- 18dB @ 60Hz
• Tri-Mode Configurable - Hi/Lo Electronic Crossover Network - Gold-Plated Speaker Output Terminal Connectors - Remote Turn ON/OFF Technical Specs: - Fuse Type: 30A x 2 - S/N Ratio: >95dB
• 4-Channel Amp System - Dual Adjustable Input GAIN Level Controls - Anti-Thump Delay Circuitry - 1000 Watt MAX Power Output - Frequency Response: 15 - 30kHz - T.H.D.: <0.04% - Dimensions (L x W x H): 12.0'' x 10.9'' x 2.7''
• Dual MOSFET Power Supply - Dual High Level Speaker Input Connectors - Power & Protection LED Indicators - 500 Watt x 2 Bridged Output (250 Watt x 2 500 Watt x 1) - Input Impedance: 10k Ohm (Low), 100 Ohm (High) - Power Supply: DC 12V

DETAILS

System Features:

• Bridgeable Audio Amplifier
• Tri-Mode Configurable
• 4-Channel Amp System
• Dual MOSFET Power Supply
• Marine Grade Construction

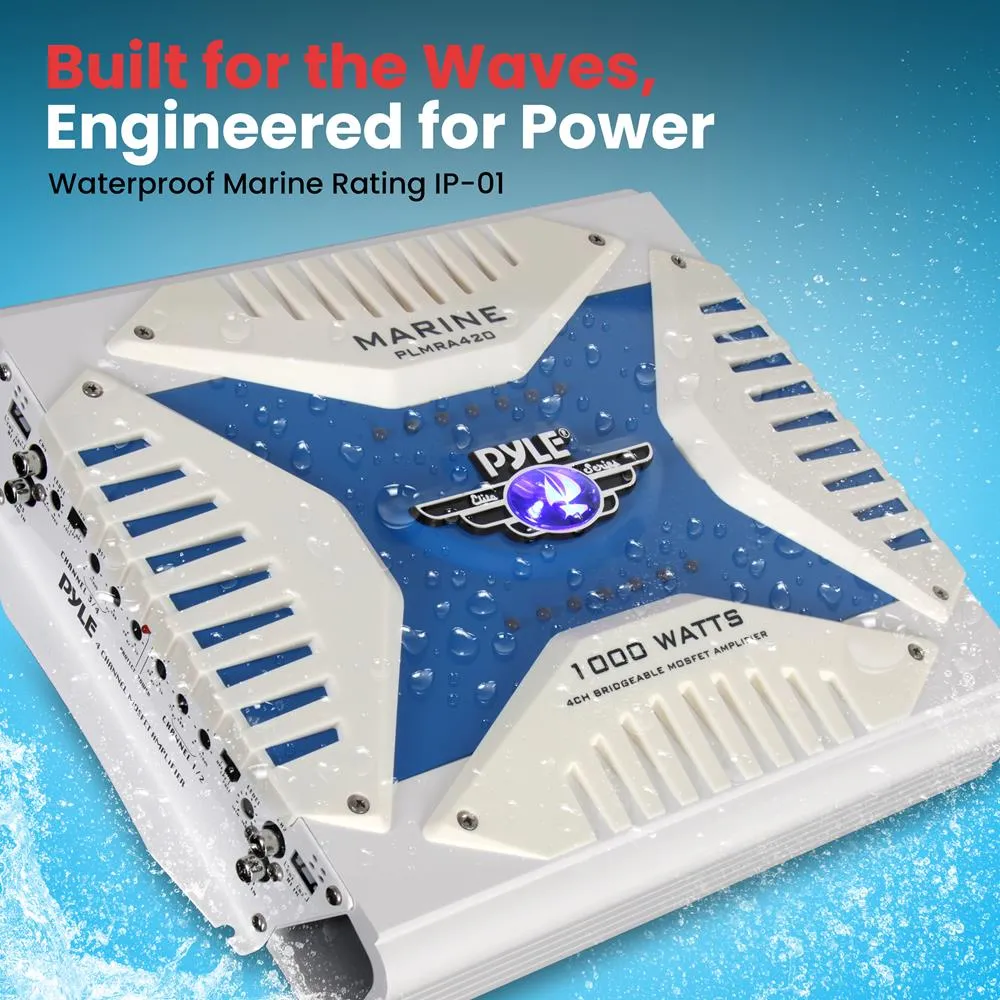

• Waterproof Marine Rating IP-01
• Hi/Lo Electronic Crossover Network
• Dual Adjustable Input GAIN Level Controls
• Dual High Level Speaker Input Connectors
• Dual RCA (L/R) Input Connector Jacks
• Dual High Pass, Low Pass & Bass Boost Controls
• Gold-Plated Speaker Output Terminal Connectors

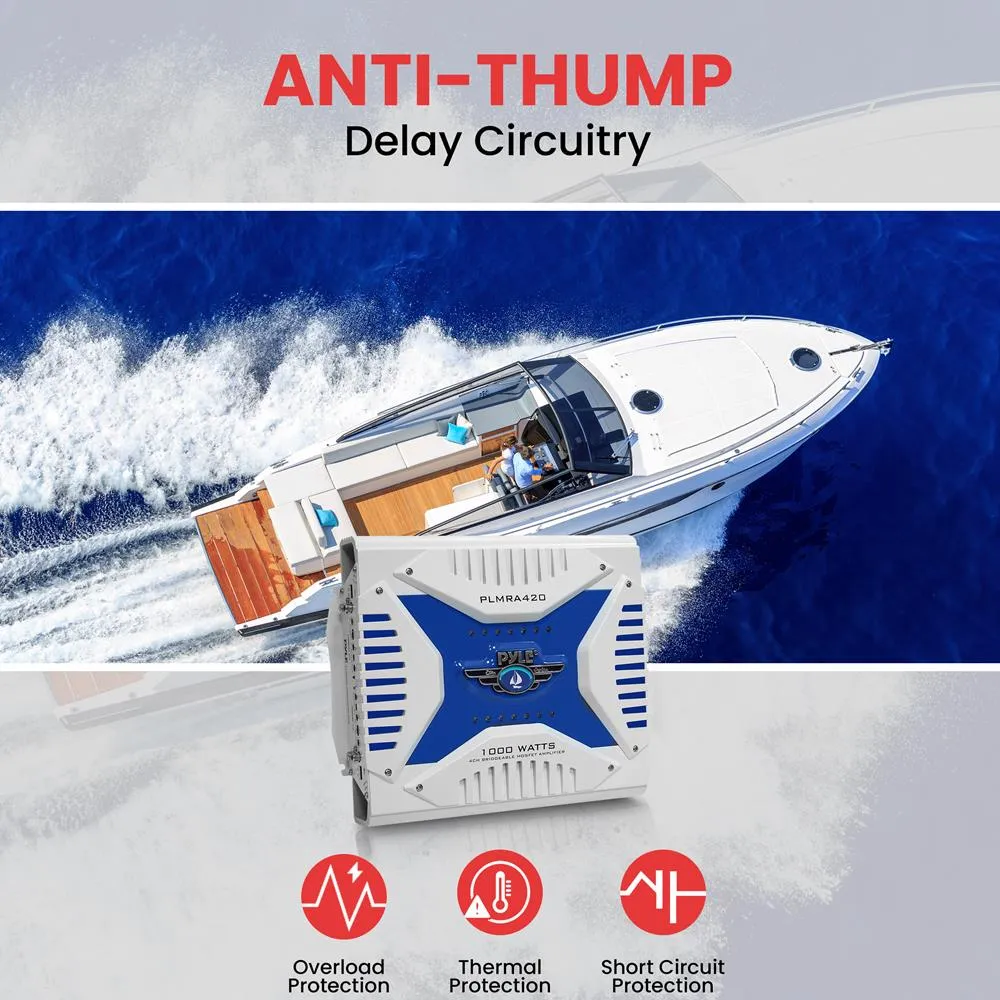

• Anti-Thump Delay Circuitry
• Power & Protection LED Indicators
• Built-in Thermal, Overload & Speaker Short Protection
• Heavy Duty Aluminum Alloy Heatsink
• Remote Turn ON/OFF

Technical Specs:

• 1000 Watt MAX Power Output
• 500 Watt x 2 Bridged Output (250 Watt x 2 500 Watt x 1)
• 250 Watt x 4 Power Output
• Amplifier Class: AB
• Fuse Type: 30A x 2
• Frequency Response: 15 - 30kHz
• Input Impedance: 10k Ohm (Low), 100 Ohm (High)
• Input Sensitivity: 250mV (Low), 2.5V (High)
• Variable Bass Boost: 0 /- 18dB @ 60Hz
• S/N Ratio: >95dB
• T.H.D.: <0.04%
• Power Supply: DC 12V

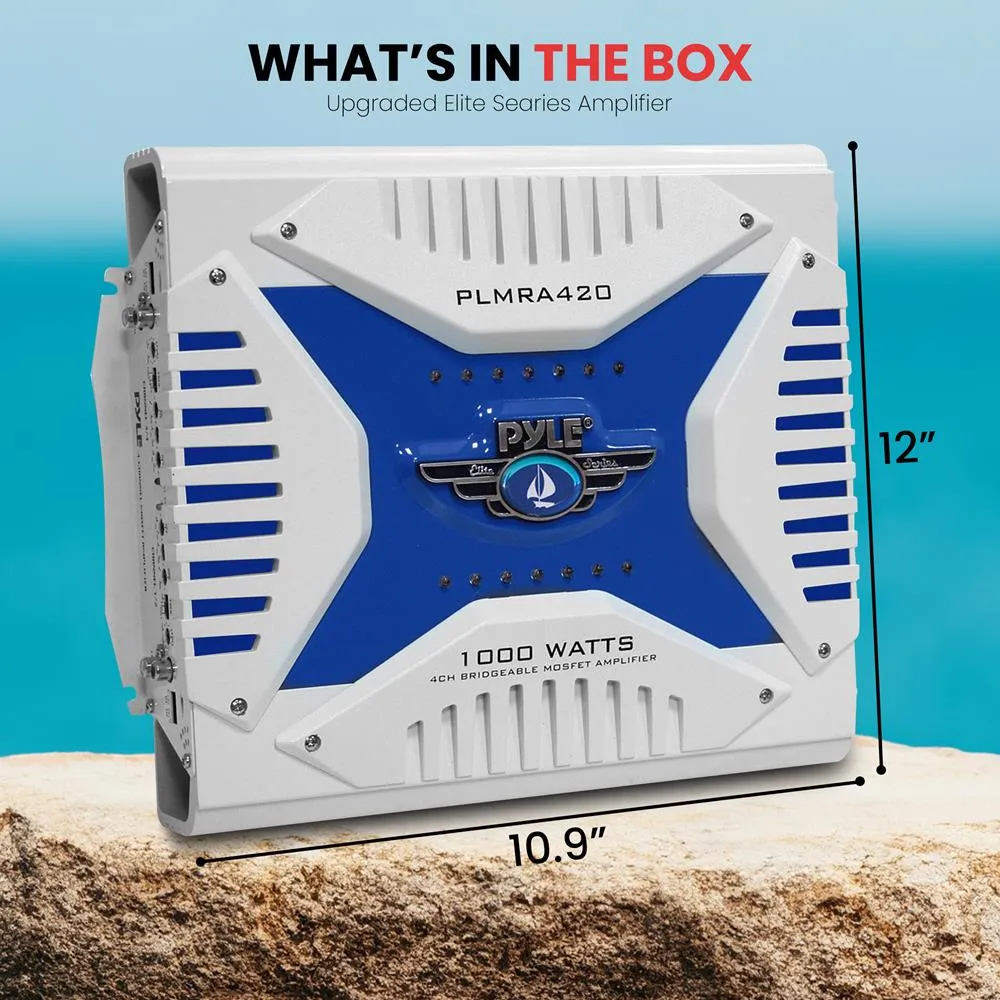

• Dimensions (L x W x H): 12.0'' x 10.9'' x 2.7''
