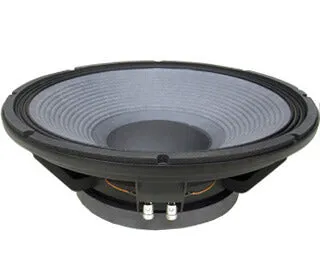

Product Details
＋
● High power handling: 700 WAES
● High sensitivity: 98 dB
● FEA optimized magnetic circuit
● Designed with MMSS technology for high control, linearity and low harmonic distortion.
● CONEX spider for higher resistance and consistency.
● Waterproof treatment for both sides of the cone.
● 4” DUO double layer inner/outer voice coil.
● Extended controlled displacement: Xmax ± 9 mm
● Massive mechanical displacement capability: Xdamage ± 47 mm
Specifications |
|
| Nominal diameter | 380 mm 15 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 7.2 ohm |
| Power capacity | 700 W AES |
| Program power | 1400 W |
| Sensitivity | 98 dB 1 W @ 1 m |
| Frequency range | 30-1500 Hz |
| Recommended enclosure volume | 60 / 150 l 2.12 / 5.3 ft³ |
| Voice coil diameter | 100 mm 4 in |
| BL factor | 21.1 N / A |
| Moving mass | 0.147 kg |
| Winding length | 20 mm |
| Air gap height | 10 mm |
| Xdamage pp | 58 mm |
Thiele Small Parameters |
|
| Fs | 42 Hz |
| Re | 5.1 ohm |
| Qms | 21.23 |
| Qes | 0.45 |
| Qts | 0.44 |
| Vas | 105.53 l |
| Cms | 92.4 µm / N |
| Rms | 1.9 kg / s |
| Sd | 0.091 m² |
| Xmax | 9 mm |
| Vd | 812 cm³ |
| Le @1 kHz | 2.1 mH |
Construction |
|
| Net weight | 10.2 kg 22.49 lb |
| Total weight | 13.30 kg 29.3 lb |
| Magnet | Ferrite |
