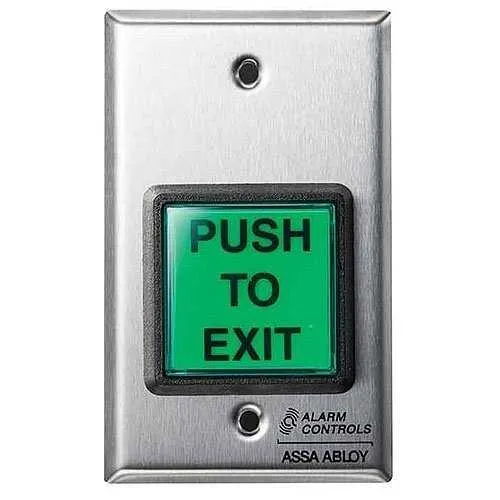

The TS-2 request to exit station, with square push button, provides a convenient way to add authorized access control to a variety of applications.

Main Features

• Switch mounted on single gang wall plate with 430 stainless steel finish
• 2" green square push button; Illuminated with hi-brightness LED
• Button labeled “PUSH TO EXIT” for easy to follow egress instructions
• Momentary SPDT action switch
• UL 294 listed

• SPDT timed contacts, rated 10A at 35VDC or 120 VAC
• Switch depth behind plate: 2-1/2"
• Switch terminated with 10” colored leads
• LED operates on 12 or 24 VAC/VDC
